5747150-9
Manufacturer:
TE Connectivity
Mfr.Part #:
5747150-9
Datasheet:
Description:

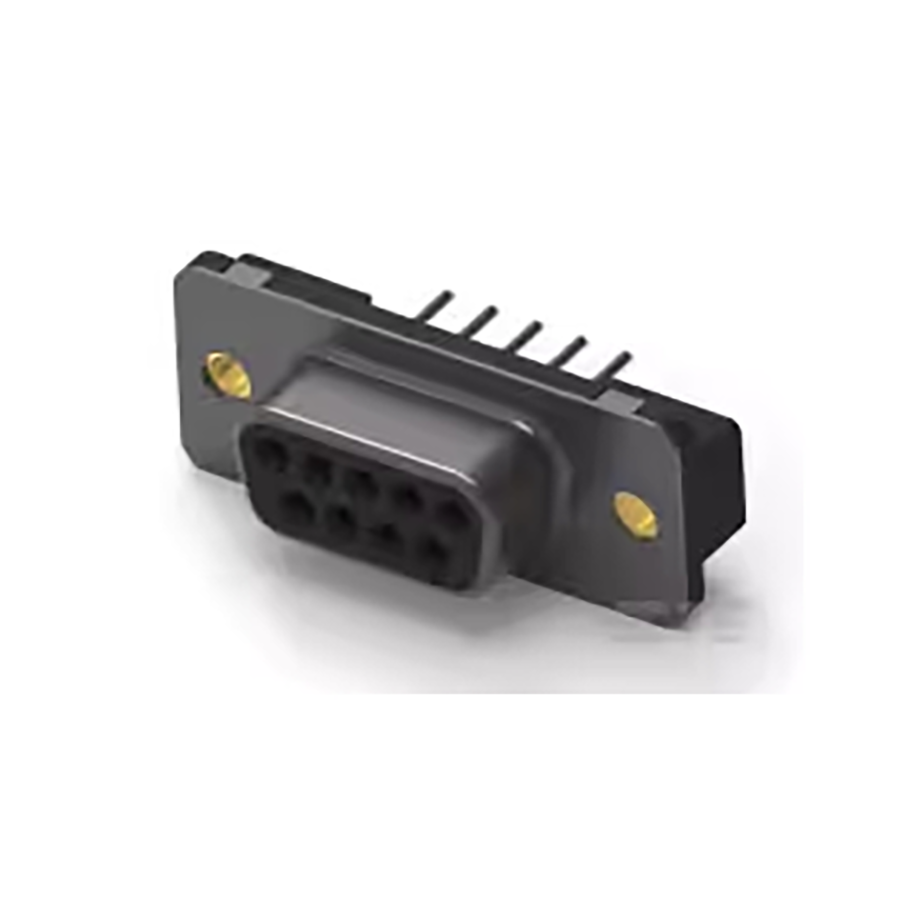

D-Sub Connectors Through Hole Receptacle Number of Positions:9 Solder Female
| Parameter | Value |
|---|---|
| Length | 30.89 mm |
| Width | 5.99 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 9 |
| Material | Metal |
| Packaging | Tube |
| Voltage Rating | 125 V |
| Depth | 12.55 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Lead Length | 4.318 mm |
| Pitch | 2.7432 mm |
| Type | Receptacle |
| Number of Terminals | 9 |
| Current Rating | 6 A |
| Max Voltage Rating (DC) | 250.25 kV |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Black |
| Gender | Female |
| Number of Contacts | 9 |
| Hole Diameter | 3.048 mm |
| Max Supply Voltage (DC) | 250 V |
| Connector Type | Receptacle |
| Contact Type | Signal |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Row Spacing | 2.8448 mm |
| Housing Material | Polyester |
| Number of Ports | 1 |
| Circuit Application | Signal |
| Max Voltage Rating (AC) | 250 V |
| Max Supply Voltage (AC) | 250 V |
| Housing Color | Black |
| Plating | Tin |
| PCB Mounting Orientation | Vertical |
| PCB Thickness | 3.175 mm |
| Contact Shape | Round |
| Preloaded | Yes |
| Shell Material | Steel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| Mating Connector Lock | With |
| PCB Mount Retention | With |
Stock: 14
Distributors
pcbx
pcbxUnit Price$5.32536
Ext.Price$5.32536
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $5.32536 | $5.32536 |
| 10 | $4.90046 | $49.00460 |
| 25 | $4.51497 | $112.87425 |
| 50 | $4.15981 | $207.99050 |
| 100 | $3.83258 | $383.25800 |
| 300 | $3.53110 | $1059.33000 |
| 500 | $3.25333 | $1626.66500 |
| 1000 | $2.99738 | $2997.38000 |
